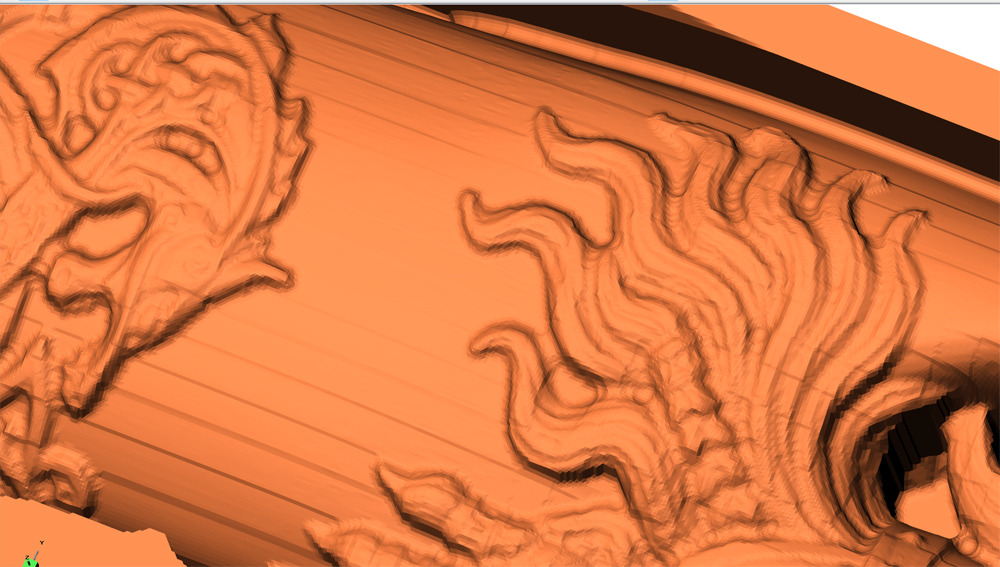

 These lines occure in preview after generating toolpath for an 1mm ball mill with 1/9 stepover. Are these lines only in preview and not after machining? |
|
These lines can indeed be an effect in the simulation. You can increase the simulation resolution (Part parameters) to check that. It can also be that these facets are already present in the STL file, then they will also be visible when you display only the geometry. |
|
|
|
|
|
